600T Two Color Vertical Clamping Horizontal Injection Molding Machine JTKR-6000D
उत्पाद विवरण:
| Place of Origin: | Guangdong, China |
| ब्रांड नाम: | JINTONG |
| प्रमाणन: | ISO9001 CE |
| Model Number: | JTKR-6000D |
भुगतान & नौवहन नियमों:
| Minimum Order Quantity: | 1PC |
|---|---|
| मूल्य: | $290000.00 - $300000.00/pieces |
| Packaging Details: | plastic film |
| Delivery Time: | 65 days |
| Supply Ability: | 60 Piece/Pieces per Month |
|
विस्तार जानकारी |
|||
| Condition: | New | Style: | VERTICAL |
|---|---|---|---|
| Machine Type: | Hydraulic | Power (kW): | 180 kW |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
| Machinery Test Report: | Provided | Video outgoing-inspection: | Provided |
| Warranty of core components: | 1 Year | Core Components: | Bearing, Motor, Pump, PLC, Pressure vessel, Engine |
| After-sales Service Provided: | Engineers available to service machinery overseas, Free spare parts, Online support | clamping force: | 220T |
| After Warranty Service: | Video technical support, Online support, Spare parts | Local Service Location: | United States, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, India, Mexico, Russia, Thailand, Malaysia, Australia, Colombia, Bangladesh, South Africa, Ukraine |
| Port: | SHENZHEN | ||
उत्पाद विवरण
220T Vertical Clamping Horizontal Injection Molding Machine

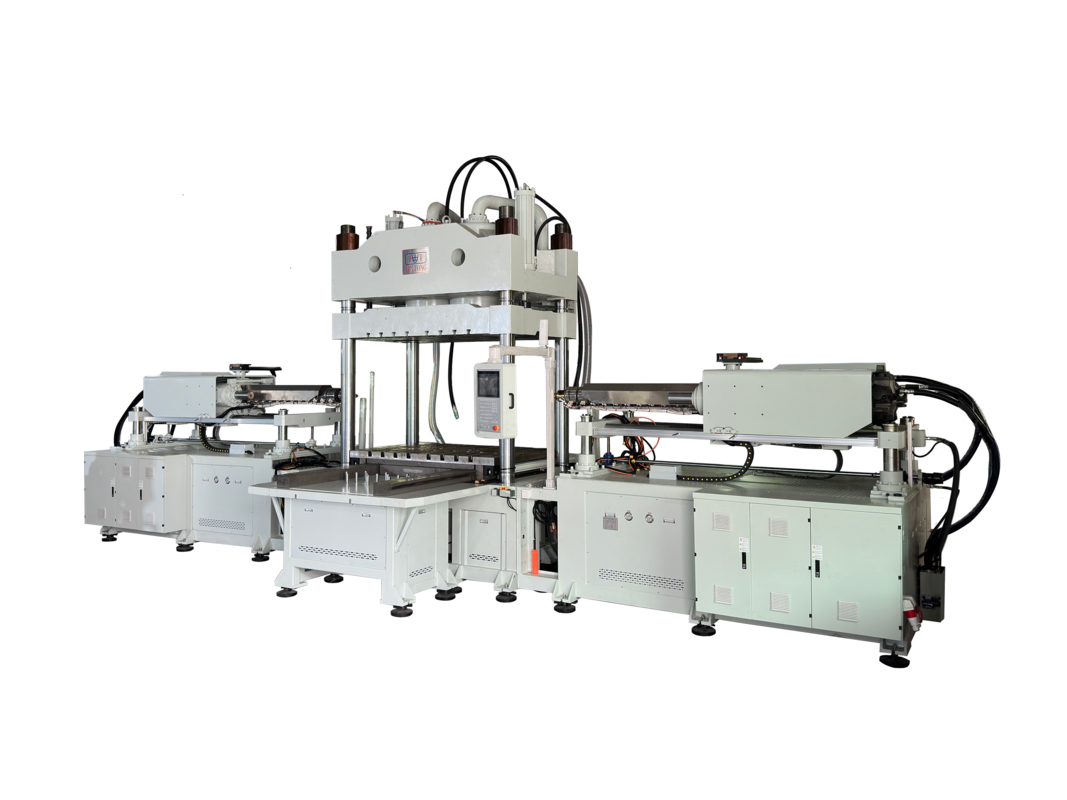

600T Two Color Vertical Clamping Horizontal Injection Molding Machine JTKR-6000D
Clamping Force: 600T
Vertical clamping, horizontal injection
Two color, single slide table
Easy to set torque , speed, deceleration distance and stand number segmentation
Energy-saving system
Main Features
1) vertical clamping, horizontal injection,
2) clamping force, injection weight and shot speed can be changed according to actual demand.
| UNIT | JTKR-6000D TWO COLOR SINGLE SLIDE TABLE | ||
| INJECTION SYSTEM | screw diameter | mm | A85 B90 |
| injection pressure | kg/cm2 | 1561 1393 | |
| theoretical shot volume | cm3 | 2410 2702 | |
| injection rate | cm3/sec | 476 534 | |
| screw stroke | mm | 425 | |
| screw speed | rpm | 0-250 | |
| nozzle contact force | tons | 11 | |
| temprature control number | - | 5 | |
| CLAMPING SYSTEM | clamping force | tons | 600 |
| opening force | tons | 50 | |
| slide table size | mm | 2150*1450 | |
| distance between tie bar | mm | 2200*1100 | |
| max mold size | mm | 1800*1100 | |
| min mould height | mm | 550+50 | |
| opening stroke | mm | 650 | |
| max open daylight | mm | 1200+50 | |
| ejector force | tons | 11 | |
| ejector stroke | mm | 100 | |
| OIL PRESSURE SYSTEM | max hydraulic pressure | kg/cm2 | A140 B140 |
| pump output | L/min | A160 B160 | |
| cooling water consumption | /hr | 1800-2300 | |
| SERVO motor power | KW | A48 B48 | |
| heating power | kw | A42 B42 | |
| total power | kw | 180 | |
| OTHER | machine weight | tons | 75 |
| machine dimension | m | 13.5*3.7*4.7 |
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
