Rotary Table Vertical Injection Molding Machine with 2 Stations 3 Stations and 250g/s Plasticizing Capacity
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | ग्वांगडोंग, चीन |
| ब्रांड नाम: | JINTONG |
| मॉडल संख्या: | JTT-1200R |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 1 टुकड़ा |
|---|---|
| मूल्य: | $32,000-40,000 / piece |
|
विस्तार जानकारी |
|||
| प्लास्टिक संसाधित: | पीपी, एबीएस | प्लास्टिक बनाने की क्षमता: | 250 ग्राम/एस |
|---|---|---|---|
| साँचे की ऊँचाई: | 150 - 520 मिमी | इजेक्टर संख्या: | 2 |
| इजेक्टर स्ट्रोक: | 75 मिमी | बेदखलदार बल: | 27 के.एन |
| शॉट वॉल्यूम: | 410 सेमी3 | इंजेक्शन दर: | 202 ग्राम/से |
| इंजेक्शन का वजन: | 369 ग्राम | पेंच की गति: | 1 - 220 आरपीएम |
| पेंच व्यास: | 50 मिमी | स्क्रू एल/डी: | 25 |
| टाई बार दूरी: | 620 एम.एम | मशीन वजन: | 5500 किग्रा |
| शक्ति: | 24.5 किलोवाट | ||
| प्रमुखता देना: | 2 Stations Vertical Injection Molding Machine,3 Stations Rotary Table Injection Molding Machine,250g/s Plasticizing Capacity Injection Molding Machine |
||
उत्पाद विवरण
Rotary Table Vertical Plastic Injection Molding Machine 120T

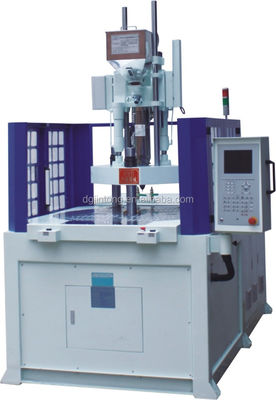

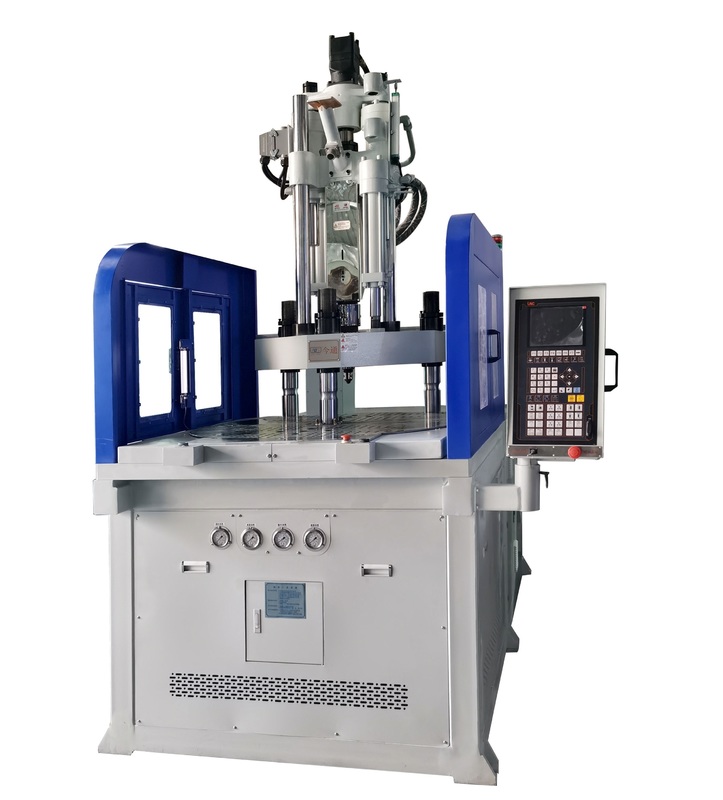

Rotary table vertical injection molding machine JTT-1200R
| Clamping Force | 120T |
| Injection Weight | 237-369g |
Vertical clamping, vertical injection. Easy to set torque, speed, deceleration distance and stand number segmentation. Computer program control for rotary table direction including forward-rotating, reverse-rotating, and forward/reverse alternative rotating. Optional energy-saving motor available.
Main Features
- Vertical clamping and vertical injection design
- Adjustable clamping force, injection weight and shot speed to meet production requirements
- Available in 2-station, 3-station or multi-station configurations (one up die, two or four down die)
- Optimized for operating insert parts and improving productivity
Product Advantages
- Energy-saving: Saves 30% energy compared to similar products using SIFU pump system
- High efficiency: SIFU motor with max speed 2200/min increases oil pump output and improves productivity by over 15%
- Low heating: Reduces cooling water quantity by at least 55% compared to similar models
- Low noise: Optimized motor operation with imported bearing and oil pump reduces working noise by 15-20db
- Precision: Fully closed-cycle control with pressure sensor and motor rotary encoder improves product consistency
Service Advantage
With 17 years of customer service experience, we've developed a systematic and standardized service process. Our 24-hour response mechanism ensures timely resolution of customer issues and delivery of excellent service.
Packing & Delivery
