Full-auto Vertical Rotary Injection Molding Machine 85T with 33 kN Ejector Force and 276 cm³ Theoretical Shot Volume
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | ग्वांगडोंग, चीन |
| ब्रांड नाम: | JINTONG |
| मॉडल संख्या: | जेटीटी-850आर |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 1 टुकड़ा |
|---|---|
| मूल्य: | $26,000-27,000 / piece |
|
विस्तार जानकारी |
|||
| प्लास्टिक बनाने की क्षमता: | 180 ग्राम/एस | साँचे की ऊँचाई: | 110 - 450 मिमी |
|---|---|---|---|
| इजेक्टर संख्या: | 2 | इजेक्टर स्ट्रोक: | 75 मिमी |
| बेदखलदार बल: | 33 के.एन | सैद्धांतिक शॉट वॉल्यूम: | 276 सेमी³ |
| इंजेक्शन दर: | 167 ग्राम/सेकंड | इंजेक्शन का वजन: | 330 ग्राम |
| पेंच की गति: | 1 - 200 आरपीएम | पेंच व्यास: | 50 मिमी |
| पेंच एल/डी अनुपात: | 25 | टाई बार्स के बीच की दूरी: | 560 मिमी |
| वज़न: | 4000 किलोग्राम | ओपन स्ट्रोक: | 500 मिमी |
| शक्ति: | 21.6 किलोवाट | ||
| प्रमुखता देना: | 85T Vertical Injection Molding Machine,33 kN Ejector Force Rotary Injection Molding Machine,276 cm³ Theoretical Shot Volume Plastic Injection Molding Machine |
||
उत्पाद विवरण

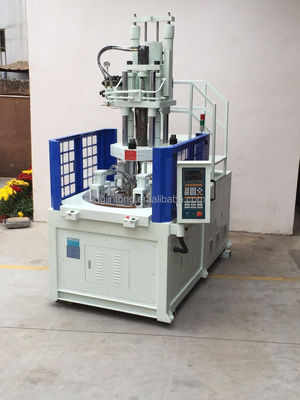

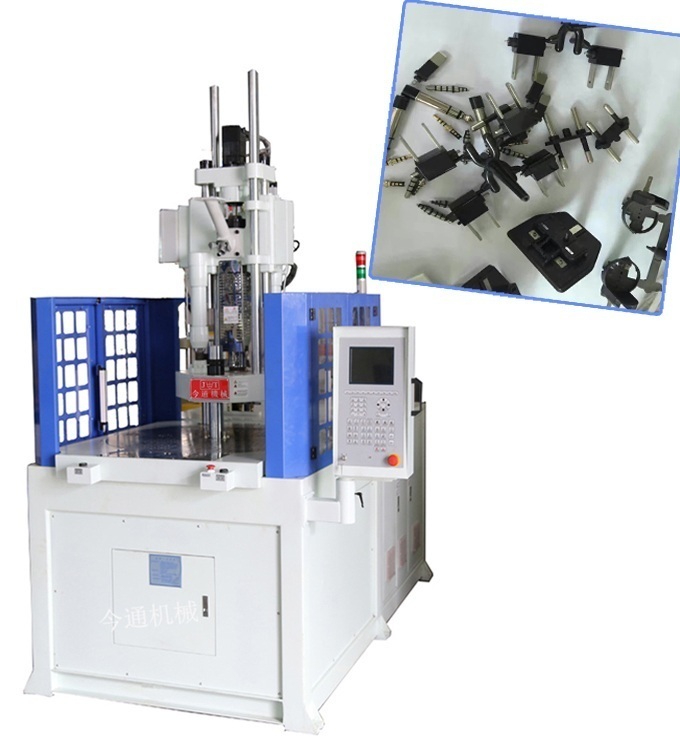

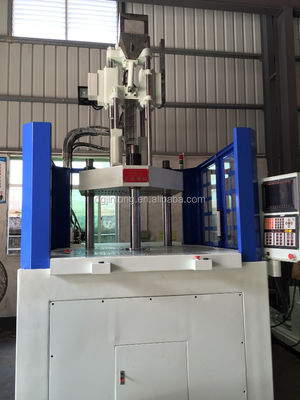

Full-auto Vertical Rotary Injection Molding Machine 85T
Product Description
Model: JTT-850R
Clamping Force: 85T
Injection Weight: 165-272g
- Vertical clamping, vertical injection
- Easy to set torque, speed, deceleration distance and stand number segmentation
- Computer program control rotary table direction (forward-rotating, reverse-rotating, forward and reverse alternative rotating)
- Optional energy-saving motor
Main Features
- Vertical clamping, vertical injection
- Clamping force, injection weight and shot speed can be adjusted according to actual demand
- Available in 2 stations, 3 stations, or multi-station configurations (one up die, two or four down die)
- Easy operation for insert parts, improves productivity
Certifications
Detailed Images
Product Advantages
- Energy-saving: Saves 30% energy compared to similar products using SIFU pump system
- High efficiency: SIFU motor with max speed 2200/min increases oil pump output and improves productivity by over 15%
- Low heating: Saves 55% cooling water quantity compared to similar products
- Low noise: Optimized motor working condition with imported bearing and oil pump reduces noise by 15-20db
- Precision: Complete close-cycle control with pressure sensor and motor rotary encoder improves product consistency
Service Advantage
17 years of customer service experience with a systematic and standardized service process. We maintain a 24-hour response mechanism to promptly solve customer problems and provide excellent service.
