Rotary Table Vertical Injection Moulding Machine with 200T Clamping Force High Productivity and 1 Year Warranty
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | JINTONG |
| प्रमाणन: | ISO9001 CE |
| मॉडल संख्या: | JTT-2000R |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 1 टुकड़ा |
|---|---|
| मूल्य: | $62,000-66,000 / piece |
|
विस्तार जानकारी |
|||
| शिकंजे का बल: | 200t | इंजेक्शन का वजन: | 456-662G |
|---|---|---|---|
| इजेक्टर स्ट्रोक: | 75 मिमी | बेदखलदार बल: | 48 kN |
| शॉट वॉल्यूम: | 678 सेमी³ | इंजेक्शन दर: | 212 ग्राम/सेकंड |
| पेंच व्यास: | 60 मिमी | टाई बार दूरी: | 760 मिमी |
| मशीन वजन: | 12000 किग्रा | ओपन स्ट्रोक: | 600 मिमी |
| शक्ति: | 44.3 किलोवाट | स्क्रू स्ट्रोक: | 260 मिमी |
| उद्घाटन बल: | 22.4t | रोटरी टेबल व्यास: | 1500 मिमी |
| मशीन आयाम: | 3.0*2.2*3.6 मी | ||
| प्रमुखता देना: | 200T Clamping Force Vertical Injection Moulding Machine,High Productivity Rotary Table Injection Moulding Machine,1 Year Warranty Vertical Plastic Injection Moulding Machine |
||
उत्पाद विवरण

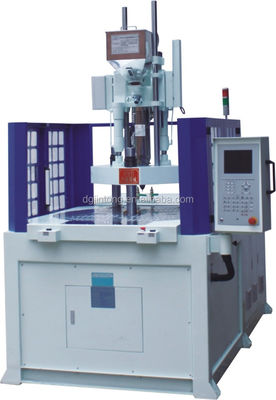

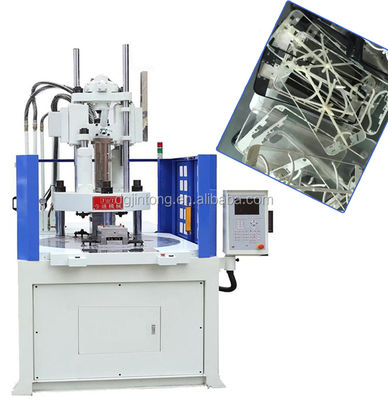

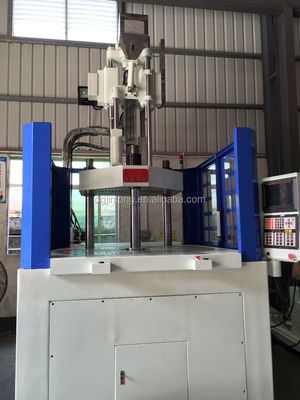

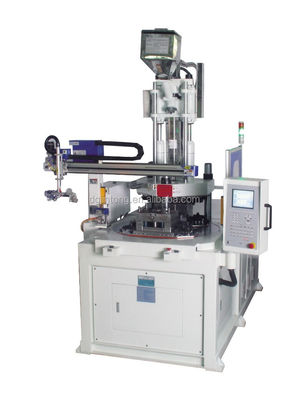

Rotary Table Vertical Plastic Injection Moulding Machine 200T (Model JTT-2000R)
Key Specifications
| Clamping Force | 200T |
|---|---|
| Injection Weight | 456-662g |
Product Description
Vertical clamping and injection system with rotary table functionality for efficient plastic molding operations.
Main Features
- Vertical clamping and injection system
- Adjustable clamping force, injection weight and shot speed
- Multiple station configurations (2, 3 or multi-station)
- Computer-controlled rotary table with forward, reverse, and alternating rotation
- Optional energy-saving motor available
- Easy torque, speed, and deceleration distance adjustment
Product Advantages
Energy Efficiency
Saves 30% energy compared to similar products using SIFU pump system
High Productivity
SIFU motor with max speed 2200/min increases oil pump output, improving productivity by over 15%
Thermal Management
Reduces cooling water requirement by 55% compared to similar machines
Quiet Operation
Optimized motor with imported bearing and oil pump reduces noise by 15-20db
Precision Molding
Closed-cycle control with pressure sensor and motor rotary encoder ensures product consistency
Service Advantage
With 17 years of customer service experience, we've developed systematic and standardized service processes including a 24-hour response mechanism to promptly resolve customer issues.
